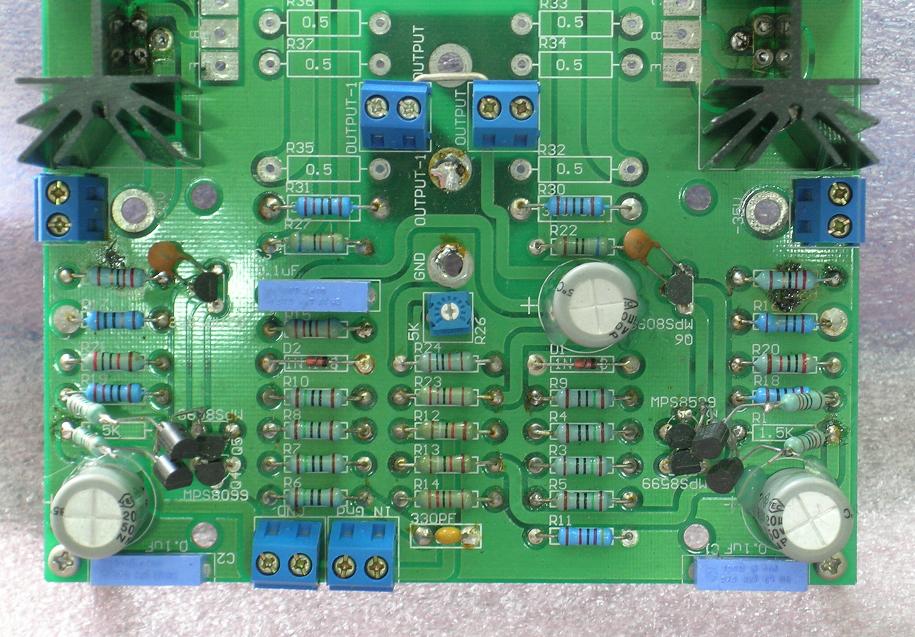

SF-106N Power Amplifier



We modified the input stage to have active load which increases the amplifier's open-loop (o/l) gain. Differential pair's degenerative resistors were increased to scale down the increased o/p gain. Hence, the input stage is further linearlized.
